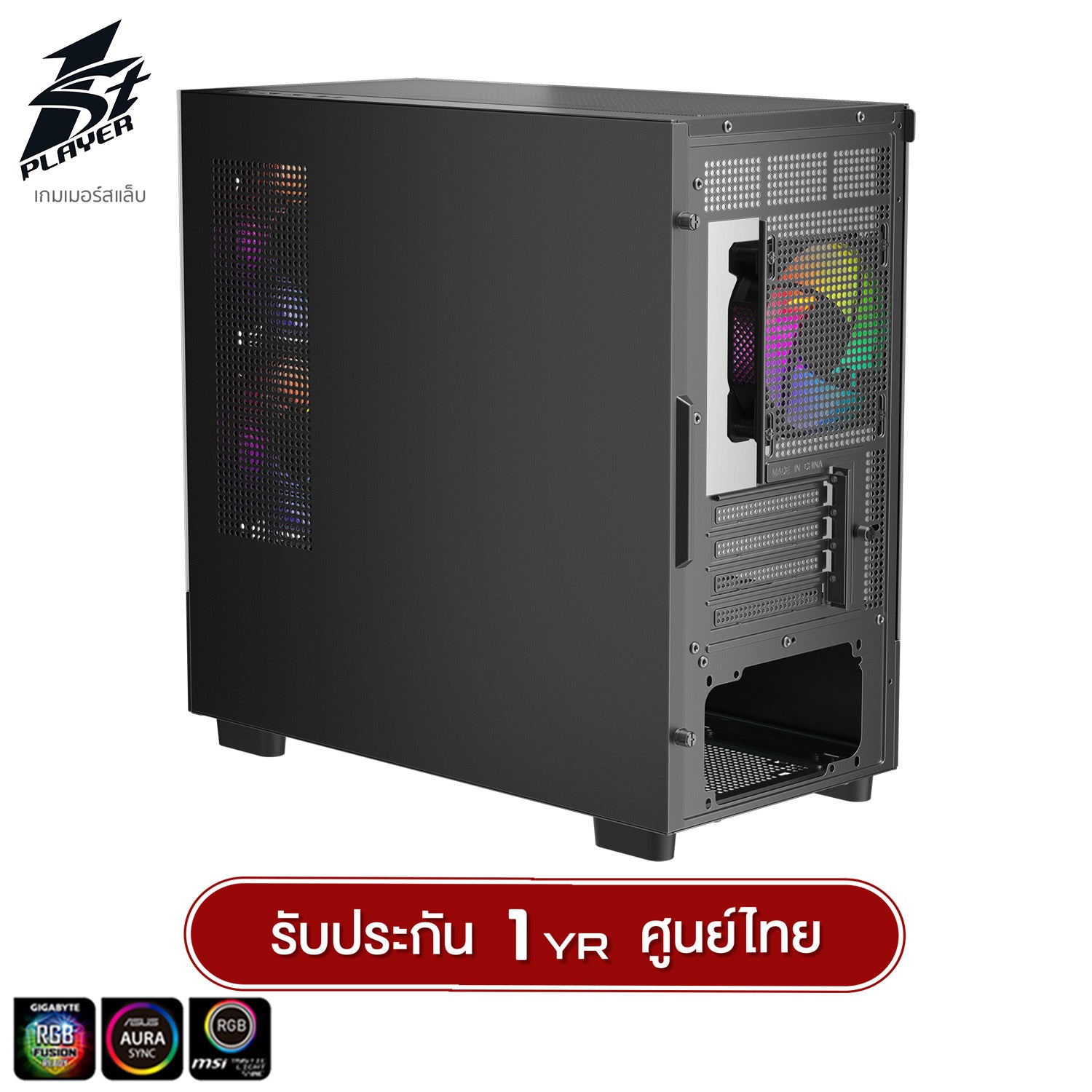

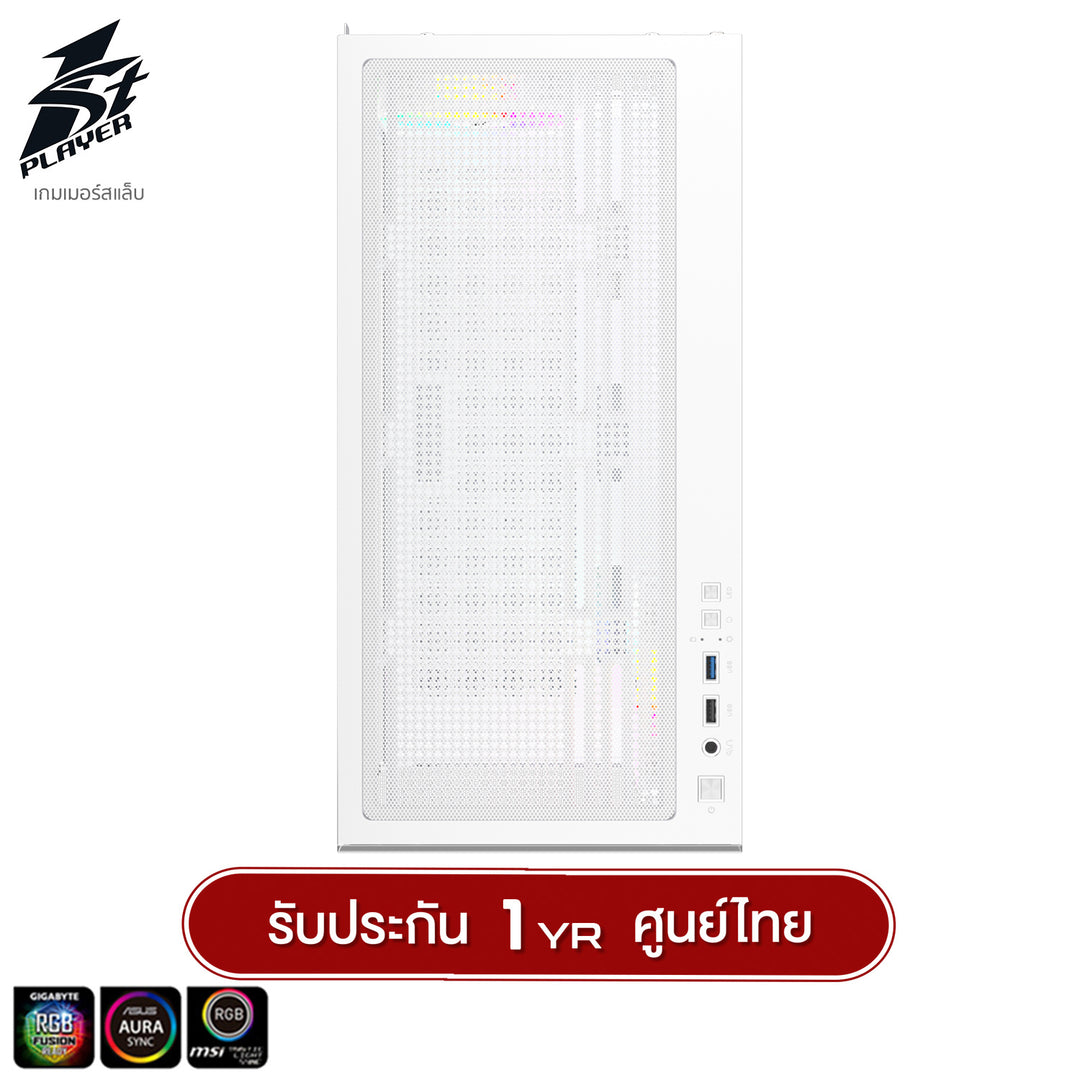

1ST Player MIKU Mi5 Panorama Tempered Glass M-ATX GAMING CASE with F7 ARGB Cooling Fan x3
Feature
Tempered Glass with ARGB Ready Cooling Fan
F7*2 + F7R ARGB Cooling Fan
360mm AIO supported
420mm GPU supported
Specification
Model Name: MIKU Mi5
Dimension
Chassis: 435X215X415MM
Product: 435X215X435MM
Package: 485X270X500MM
Material: SPCC + TEMPERED GLASS
M/B Form Factor: MATX/ITX
User Interfac
USB 3.1: N/A
USB 3.0: 1 port
USB 2.0: 1 port
Audio Port: 1 port
PCI Slots: 4 Slots
Front Panel Cooling Ports
Cooling Fans: N/A
Heatsink
Thickness: N/A
Length: N/A
Rear Panel Cooling Ports
Cooling Fans: 120mm*1
Heatsink
Thickness: N/A
Length: N/A
Top Panel Cooling Ports
Cooling Fans: 120mm*3
Heatsink
Thickness: 25mm
Length: 120/240/360mm
Inner Panel Cooling Ports
Cooling Fans: 120mm*2
Heatsink: Thickness: N/A
Length: N/A
Bottom Panel Cooling Ports
Cooling Fans: 120mm*3
Heatsink
Thickness: N/A
Length: N/A
Drive Bay
5.25" ODD: N/A
3.5"/2.5” HDD: 1
3.5" HDDD: 1
VGA Card Length: 420mm
CPU Cooler Height: 165mm
1ST Player F7 & F7R ARGB 12CM Cooling Fan
Specification
Model: F7(Standard Blade) / F7R (Reverse Blade)
Connector: 4pin(PWM) + 3pin(ARGB)
Dimension: 120x120x25mm
Rated Voltage: DC12V
Rated Current: 0.28 +- 10%
Rated Power 3.36W +-10%
Fan Leaves: 9
Cable: 500mm +-10%
Bearing: Hydraulic Bearing
Max Airflow: 56.34 CFM
Pressure: 1.74mm-H2O
Rotation: 600 – 1800RPM +-10%
Noise Level:
Lighting: ARGB
Lighting Current: 0.14A +- 10%
Lighting Power: 0.7W +-10%
