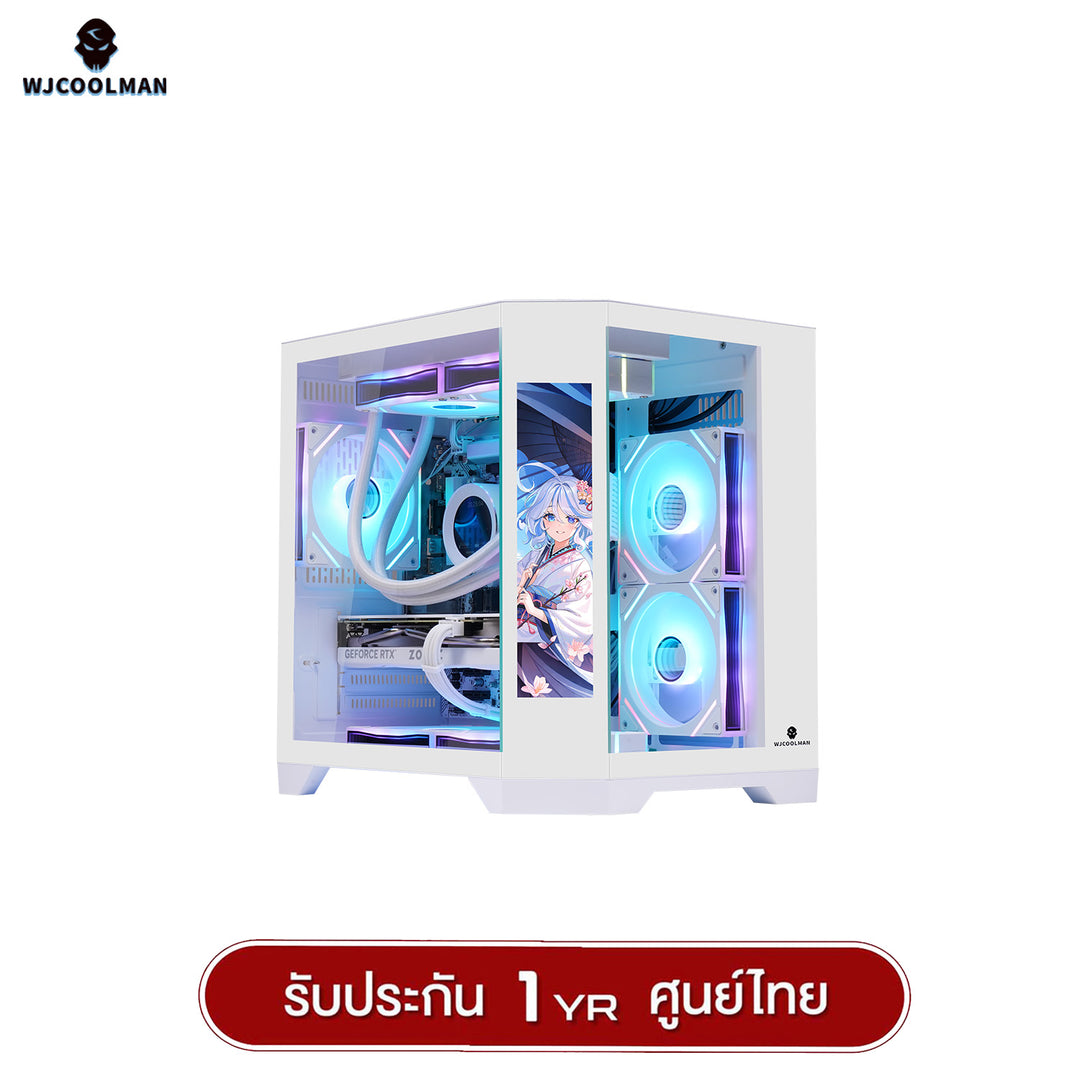

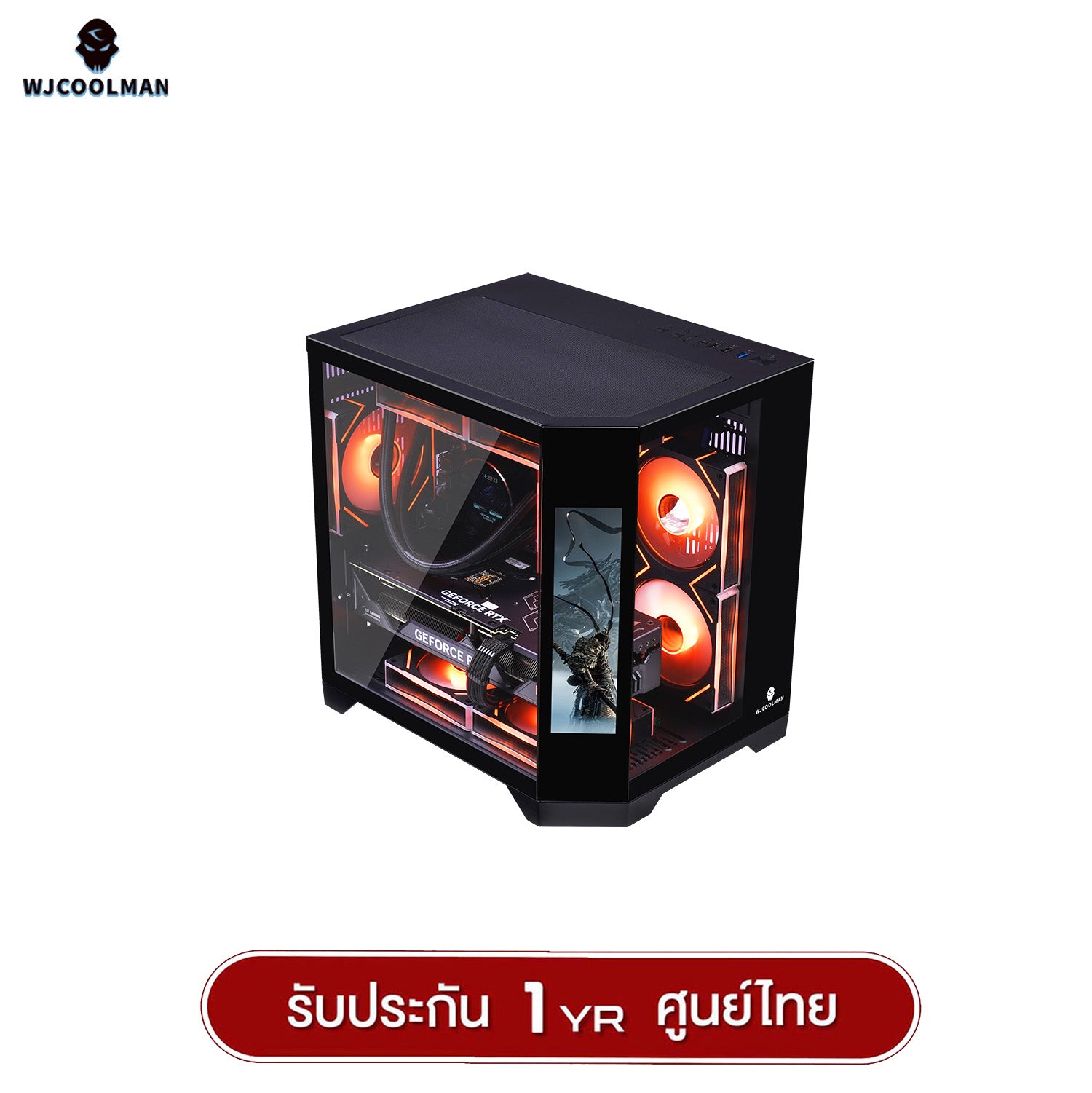

WJCOOLMAN Dreamer LCD Mini Panorama Tempered Glass M-ATX GAMING CASE
Feature
Tempered Glass + Display Sub Screen
240mm AIO supported
330mm GPU supported
Specification
Model Name: Dreamer LCD Mini
Dimension Chassis 350X280X350MM
Product: 350X280X375MM
Package: 435X340X425MM
Material: SPCC + TEMPERED GLASS
M/B Form Factor: MATX/ITX
User Interface: USB 3.1: NA
USB 3.0: 1 port
USB 1.0: 1 port
Audio Port: 1 port
PCI Slots: 4 Slots
Front Panel Cooling Ports: Cooling Fans: NA
Heatsink: Thickness: NA
Length: NA
Rear Panel Cooling Ports: Cooling Fans: 120mm*1
Heatsink: Thickness: NA
Length: NA
Top Panel Cooling Ports: Cooling Fans: 120mm*2
Heatsink: Thickness: 25mm
Length: 120/240mm
Inner Panel Cooling Ports: Cooling Fans: 120mm*2
Heatsink: Thickness: NA
Length: NA
Bottom Panel Cooling Ports: Cooling Fans: 120mm*2
Heatsink: Thickness: NA
Length: NA
Drive Bay: 5.25" ODD: NA
3.5"/2.5” HDD: 1
2.5" SSD: 2
VGA Card Length: 330mm
CPU Cooler Height: 157mm
Screen Spec
Outline Dimension: 64.3 x 231.3 MM (typ)
Display area: 54.72(H) x 218.88 MM(V)
Number of Pixel: 480 RGB (H) x 1920 pixels(V)
Pixel arrangement：RGB Vertical stripe

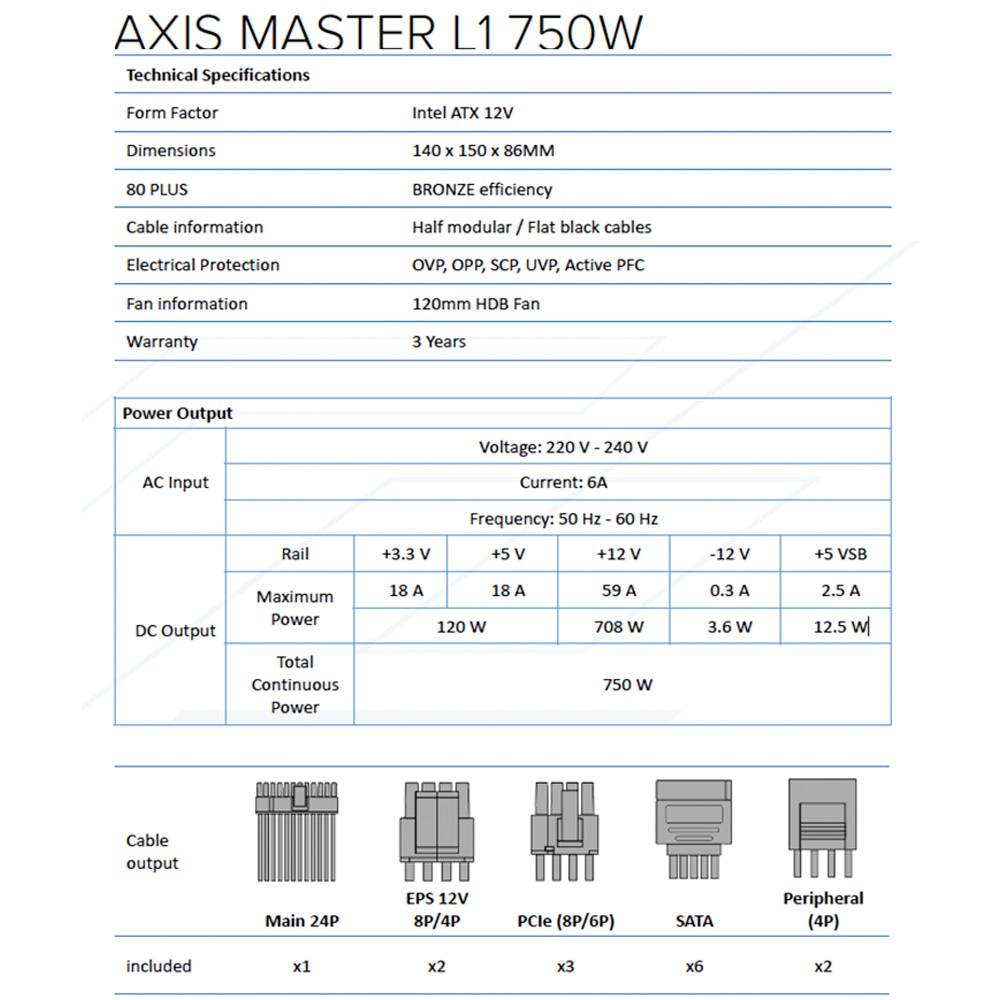

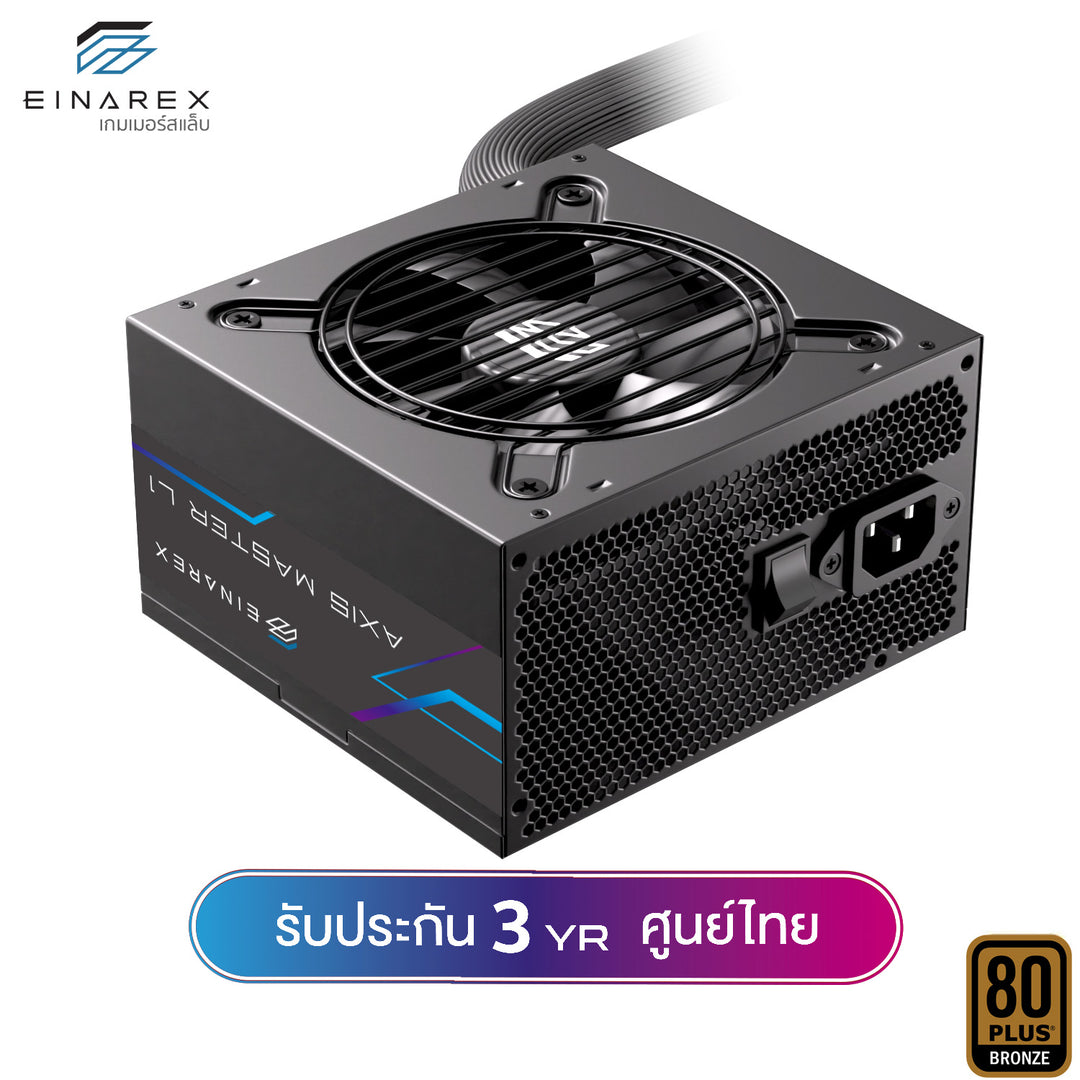

Einarex AXIS MASTER L1 Semi-Modular 80+ Bronze Power Supply
Feature
-12cm FDB Low Noise Fan
- Semi-Modular Flat Cable
- 80+ Bronze Efficiency
- Active PFC
